G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

Product Categories
Shenzhen damu technology co. LTD
Contact Now

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

Brand Name : DAMU

Model Number : ABS 1*4U

Certification : CE

Place of Origin : CHINA

MOQ : 2pcs

Supply Ability : 20000pcs/day

Packaging Details : blister packing,outside carton

material : ABS BOX

connector : SCUPC

fiber : G675A OR G625D

Length : 1.0m (±0.1) or customer specified

BRAND : DAMU OR OEM

fiber dia : 2.0mm OR 3.0mm

Contact Now

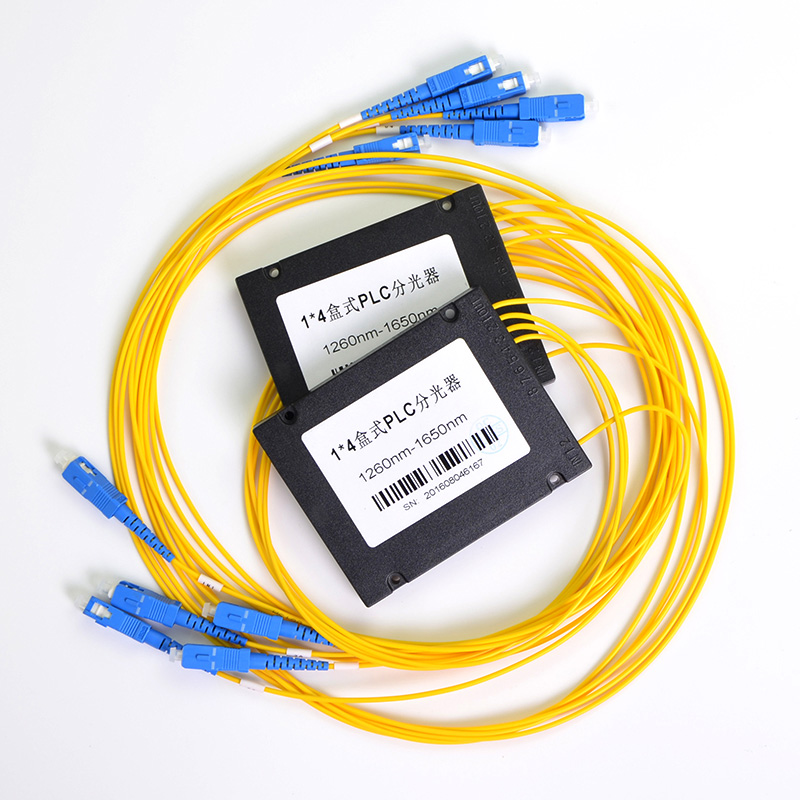

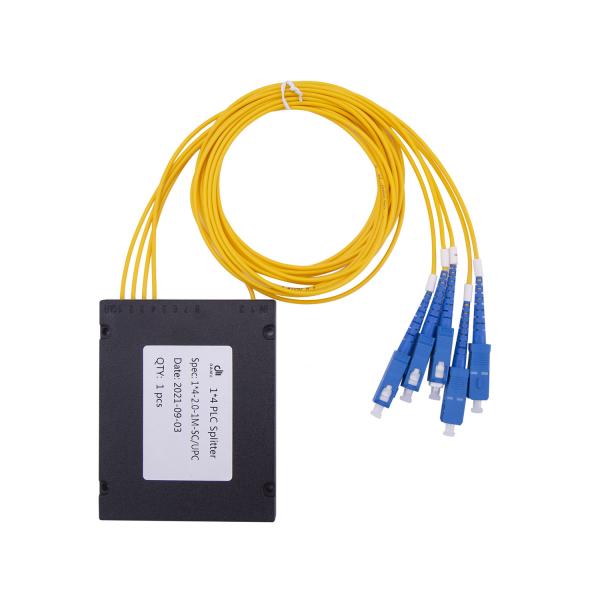

1X4 SC/UPC ABS box type 2.0mm/3.0mm 1m/1.5m cable length G657A G625D fiber blister packing

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
specification
1x4
1x8
1x16
Return loss
>55
>55
>55
Insert loss
<7.4
<10.7
<13.9
Pigtail Diameter:
0.9mm
0.9mm
0.9mm
Fiber type
G657A1
G657A1
G657A1
Fiber length
0.3M
0.3M
0.3M
connector type
SC
SC
SC
operating temperature
-40~85
-40~85
-40~85
storage temperature
-40~85
-40~85
-40~85
operating wavelength
1260~1650NM
1260~1650NM
1260~1650NM

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable
