Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter

Product Categories
Shenzhen damu technology co. LTD
Contact Now

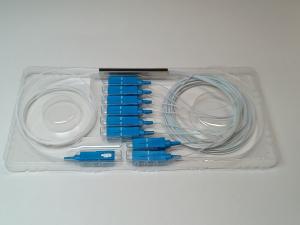

Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter

  • 1
  • 2
  • 3

Brand Name : DAMU or OEM

Model Number : PLC 1*8 SCUPC

Place of Origin : CHINA

MOQ : 2PCS

Supply Ability : 20000PCS/DAY

Packaging Details : BLISTER/PLASTIC BAG/CARTON/PALLET

PORT : 1*8

FIBER : G657A

LENGTH : 1/1.5M or customization

COLOR : WHITE

CONNECTOR : SCUPC

brand : DAMU or OEM

Contact Now

Mini Fiber Optic PLC Splitter SC/UPC Connector SM G657A1 1x8 Splitter Optic PLC

Specification
item
value
Place of Origin
China
Brand Name
DAMU
Model Number
1*8
Type
FTTx Solutions
No. of Fiber
8.
Use
ftth
Product name
1 *8 PLC Splitter
Type
FTTH Solutions
Application
Telecommunication
Fiber Type
G657A1
Certification
CE/ROHS/ISO9001
Warranty
1 Year
Ports
8 Ports
Connector Type
SCUPC

Features

*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used

Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter

Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter

Splitter 1.5meters

Parameter Unit 1×2 1×4 1×8 1×16 1×32 1×64
Fiber Type / G.657A, or customized
Operating Wavelength nm 1260~1650
Insertion Loss P Max dB 4.0 7.0 10.4 13.5 16.8 20.5
S Max dB 4.2 7.3 10.6 13.8 17.1 20.8
PDL Max dB 0.2 0.3 0.3 0.3 0.3 0.5
Loss Uniformity Max dB 0.6 0.8 1.0 1.4 1.6 2.0
Return Loss Min dB 55(P Grade)/50(S Grade)
Directivity Min dB 55
Operating Temperature ℃ -40 ~ +85
Storage Temperature ℃ -40 ~ +85
Dimension(L×W×H) mm 40×4×4 50×7×4 60×12×4

Remark:

The above parameters do not include connectors;

If connectors are added, the insertion loss will increase 0.2dB each.

Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter

Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC SplitterMini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter

Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter
